Copying

copy() duplicates the entire shape in linear or circular arrangements. The original solid is cloned as-is — FluidCAD doesn't re-run any modeling operations, it just places copies of the finished shape at new positions.

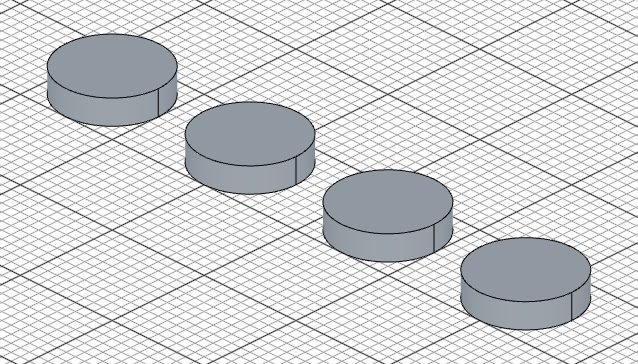

Linear copy

Duplicate a shape along one axis:

import { circle, copy, extrude, sketch } from 'fluidcad/core';

sketch("xy", () => {
    circle([150, 150], 100)
})

extrude()

copy("linear", "x", {
    count: 4,
    offset: 150
})

Options:

• count — total number of instances (including the original)
• offset — spacing between each instance
• skip — indices to skip (0-based)

Multi-axis linear copy

Copy along two axes at once:

copy("linear", ["x", "y"], {
    count: 4,
    offset: 150,
    skip: [[2], [1, 3]]       // skip index 2 on X, indices 1 and 3 on Y
})

When using two axes, count, offset, and skip can each be arrays — one value per axis.

Circular copy

Duplicate a shape around an axis:

copy("circular", "z", {
    count: 4,
    angle: 180                // spread copies over 180°
})

Options:

• count — total number of instances (including the original)
• angle — total angle to spread across (default: 360)
• skip — indices to skip

Example: bolt pattern

Create a base plate with a grid of holes:

import { sketch, extrude, cut, copy } from 'fluidcad/core';
import { rect, circle, move } from 'fluidcad/core';

// Base plate
sketch("xy", () => {
    rect(200, 120).center()
})

const plate = extrude(10)

// One hole
sketch(plate.endFaces(), () => {
    move([-70, -40])
    circle(15)
})

cut()

// Duplicate the hole in a 4x3 grid
copy("linear", ["x", "y"], {
    count: [4, 3],
    offset: [46, 40]
})

Copy vs. Repeat

copy() duplicates the finished shape. If you need to re-apply a modeling operation (like a cut or extrude) at multiple positions — so it interacts with the underlying solid at each location — use repeat() instead.
