Constrained Geometry
Constrained geometry lets you create lines, arcs, and circles that are tangent to existing sketch elements. Instead of calculating positions and angles by hand, you describe the relationship you want and FluidCAD solves the geometry for you.
The three constrained primitives are:
tLine()— a line tangent to one or two objectstArc()— an arc tangent to objects, points, or the previous elementtCircle()— a circle tangent to two objects
Constraint qualifiers
When a constrained shape is tangent to a circle or curve, you often need to specify how it should be tangent. Import qualifiers from fluidcad/constraints:
import { outside, enclosing, enclosed } from 'fluidcad/constraints';

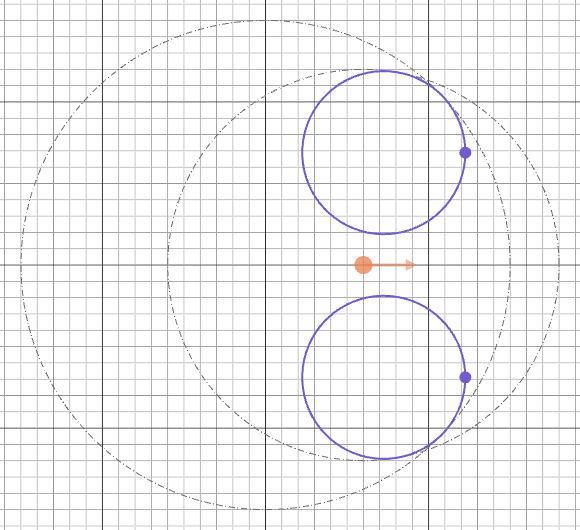

outside(obj)— tangent on the outside of the circle/curveenclosing(obj)— the result encloses the circle/curveenclosed(obj)— the result is enclosed by the circle/curve

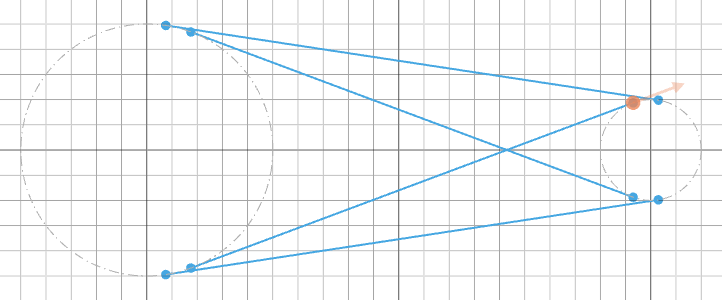

If you don't use a qualifier, FluidCAD returns all valid solutions. Use qualifiers to narrow it down to the one you want.

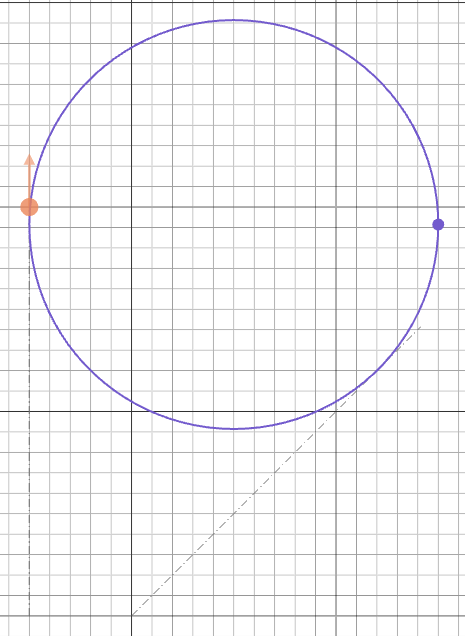

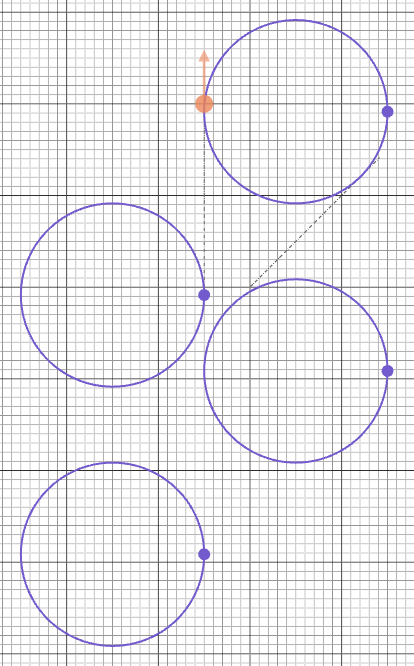

The mustTouch option
tArc() and tCircle() accept an optional mustTouch boolean as their last argument. When true, only solutions that physically touch both objects are included:
tArc(c1, c2, 50, true) // only arcs that touch both c1 and c2
tCircle(l1, l2, 200, true) // only circles that touch both lines
This is useful when the solver finds multiple valid tangent arcs or circles and you only want the ones that are in contact with both inputs.
tLine
Tangent continuation
The simplest use — draw a line that continues in the current tangent direction (shown by the orange arrow in the viewport):
sketch("xy", () => {
arc(50, 0, 90)
tLine(100) // 100 units in the tangent direction
})
Tangent to two objects
Draw a line tangent to two circles, arcs, or curves:
import { outside, enclosing } from 'fluidcad/constraints';
sketch("xy", () => {
const c1 = circle(100).guide()
const c2 = circle([200, 0], 60).guide()

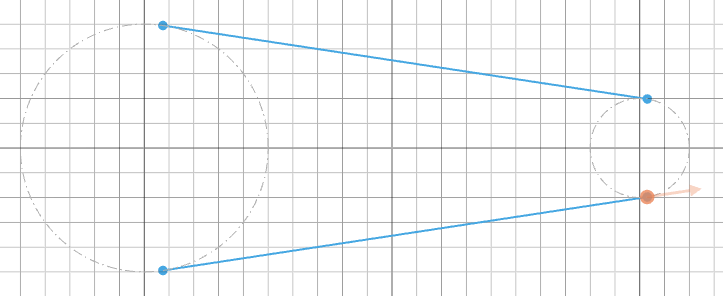

tLine(outside(c1), outside(c2)) // tangent on the outside of both
})
Different qualifiers give different tangent lines:
tLine(outside(c1), outside(c2)) // crosses between the circles

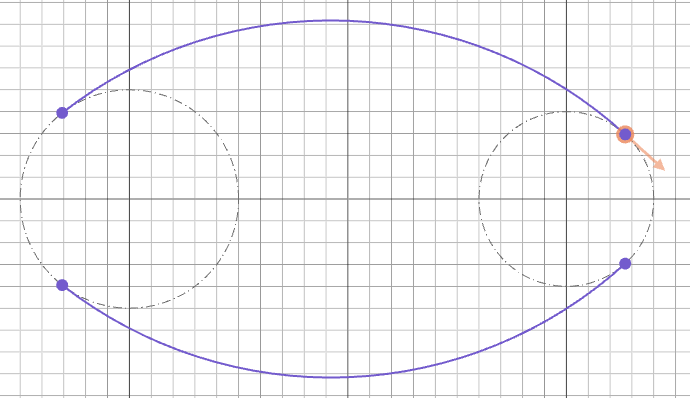

tLine(enclosing(c1), enclosing(c2)) // wraps around both circles

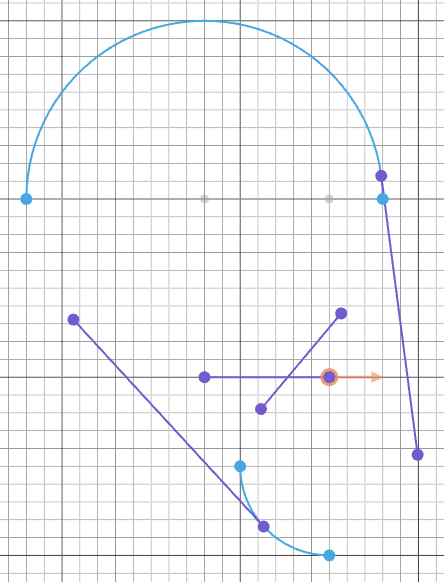

Tangent between arcs
sketch("xz", () => {
move([-20, 0])
const a1 = arc(100, 0, 180)
move([50, -150])
const a2 = arc(50, 270, 0)
tLine(a1, a2) // line tangent to both arcs
})
Accessing tangent line endpoints
The result of a two-object tLine() exposes .start() and .end() vertices, which you can use to connect other geometry:
const t1 = tLine(outside(c1), outside(c2))
const t2 = tLine(enclosing(c1), enclosing(c2))
// Connect the tangent lines with arcs
tArc(t1.end(), t2.end(), t1.tangent())
move(t1.start())
tArc(t2.start(), t1.start(), t1.tangent().reverse())
tArc
tArc() is the most flexible constrained primitive. It can create arcs in several ways.
Tangent continuation
Continue from the current position and tangent direction:
sketch("front", () => {
vLine(100)
tArc(50, 180) // radius 50, sweep 180°
tArc(80, -270) // radius 80, sweep -270° (clockwise)
})
Negative angles sweep clockwise, positive angles sweep counter-clockwise.

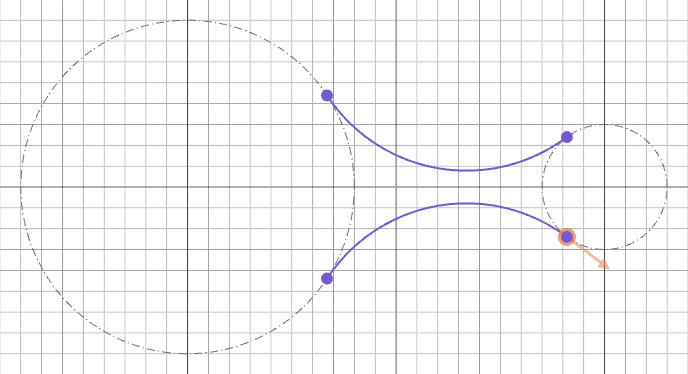

Tangent to two objects
Draw an arc tangent to two circles, lines, arcs, or points:
sketch("xy", () => {
const c1 = circle(160).guide()
const c2 = circle([200, 0], 60).guide()
tArc(outside(c1), outside(c2), 80) // radius 80, outside both
})

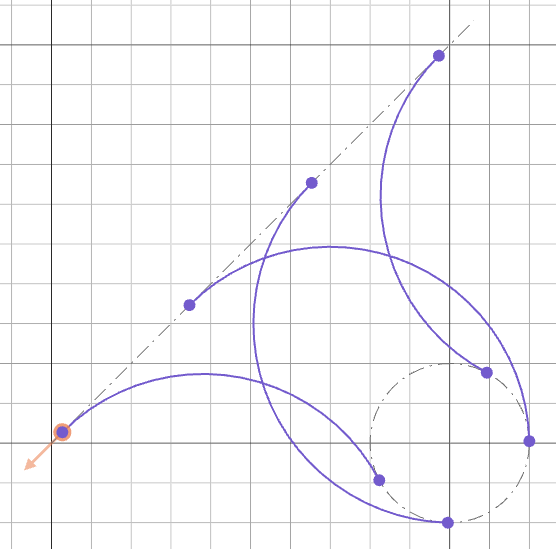

Between a circle and a line
sketch("xy", () => {
const l = aLine(150, 45)
const c = circle([100, 0], 40)
tArc(c, l, 50).guide() // radius 50, tangent to both
})

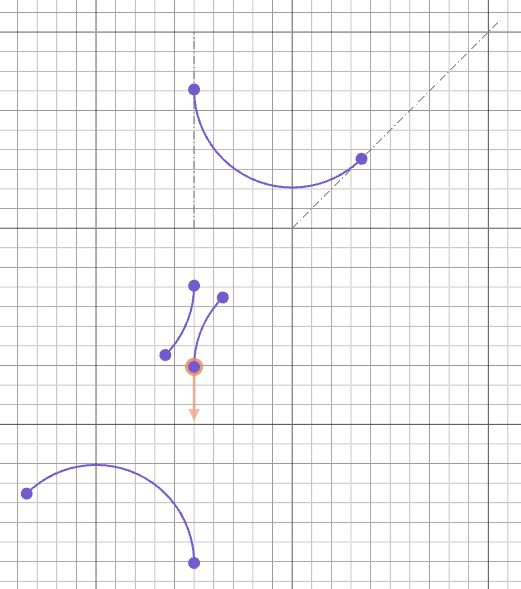

Between two lines
sketch("xy", () => {
const l1 = aLine(150, 45)
move([-50, 0])
const l2 = vLine(100)
tArc(l1, l2, 50).guide() // fillet-like arc between two lines
})
Through two points
sketch("xy", () => {
tArc([-50, 0], [50, 0], 150) // arc through two points, radius 150
})
From object to point
sketch("xy", () => {
const c = circle([100, 0], 40)
const p = [100, 50]
move(p)
tArc(outside(c), p, 100) // arc from circle to point, radius 100
})
tCircle
tCircle() creates a full circle tangent to two objects. It takes the two objects and a diameter.

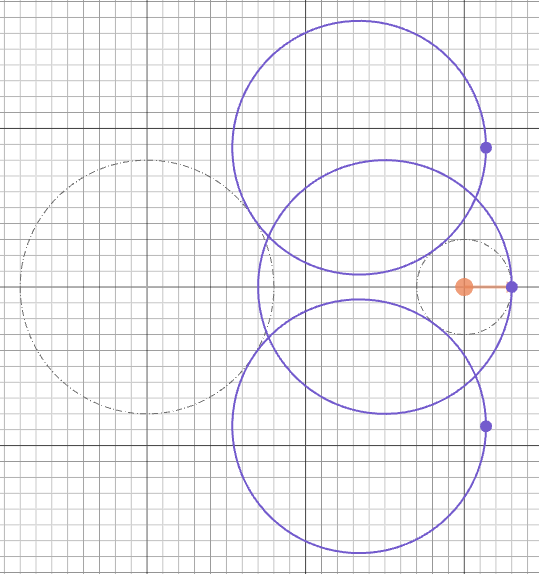

Tangent to two circles
import { outside, enclosing } from 'fluidcad/constraints';
sketch("xy", () => {
const c1 = circle(160).guide()
const c2 = circle([200, 0], 60).guide()
tCircle(c1, enclosing(c2), 160).guide() // tangent to c1, enclosing c2
tCircle(outside(c1), outside(c2), 160).guide() // outside both
})

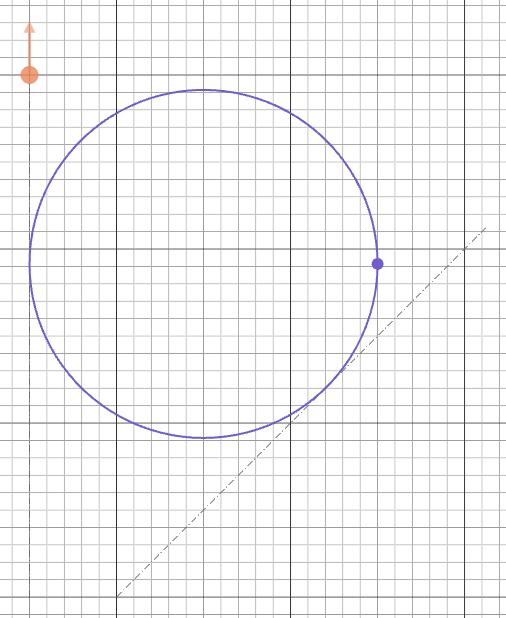

Tangent to two lines
sketch("xy", () => {
const l1 = aLine(300, 45)
move([-50, 0])
const l2 = vLine(300)
tCircle(l1, l2, 200, true).guide() // diameter 200, tangent to both lines
})
The fourth argument is mustTouch — when true, only solutions that touch both lines are returned.

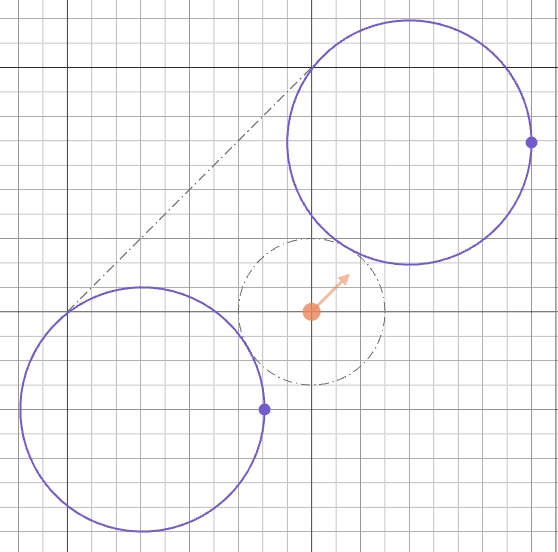

Between a circle and a line
sketch("xy", () => {
const l = aLine(150, 45)
const c = circle([100, 0], 60)
tCircle(c, l, 100).guide()
})

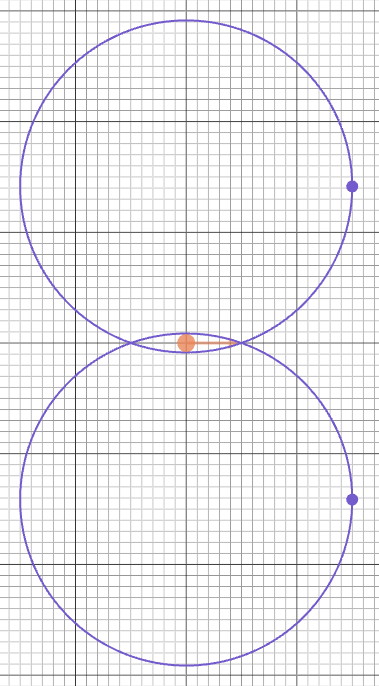

Through two points
sketch("xy", () => {
tCircle([-50, 0], [50, 0], 300) // diameter 300, through both points
})
Common patterns
Using guides for construction
Constrained geometry often works with .guide() shapes — construction circles and lines that define the tangent relationships but aren't part of the final profile:
sketch("xy", () => {
// Construction geometry
const c1 = circle(100).guide()
const c2 = circle([200, 0], 60).guide()
// Actual profile built from tangent lines and arcs
const t1 = tLine(outside(c1), outside(c2))
const t2 = tLine(enclosing(c1), enclosing(c2))
tArc(t1.end(), t2.end(), t1.tangent())
move(t1.start())
tArc(t2.start(), t1.start(), t1.tangent().reverse())
})
extrude(20)
Smooth profiles with tangent chaining
Use tArc() after lines to create smooth transitions. The tangent direction carries forward automatically:
sketch("front", () => {
vLine(100) // straight up
tArc(50, 180) // smooth turn
tArc(80, -270) // another smooth turn
tLine(50) // continue tangent
})
Each element starts where the previous one ended, and tangent arcs/lines maintain G1 continuity (no sharp corners).
